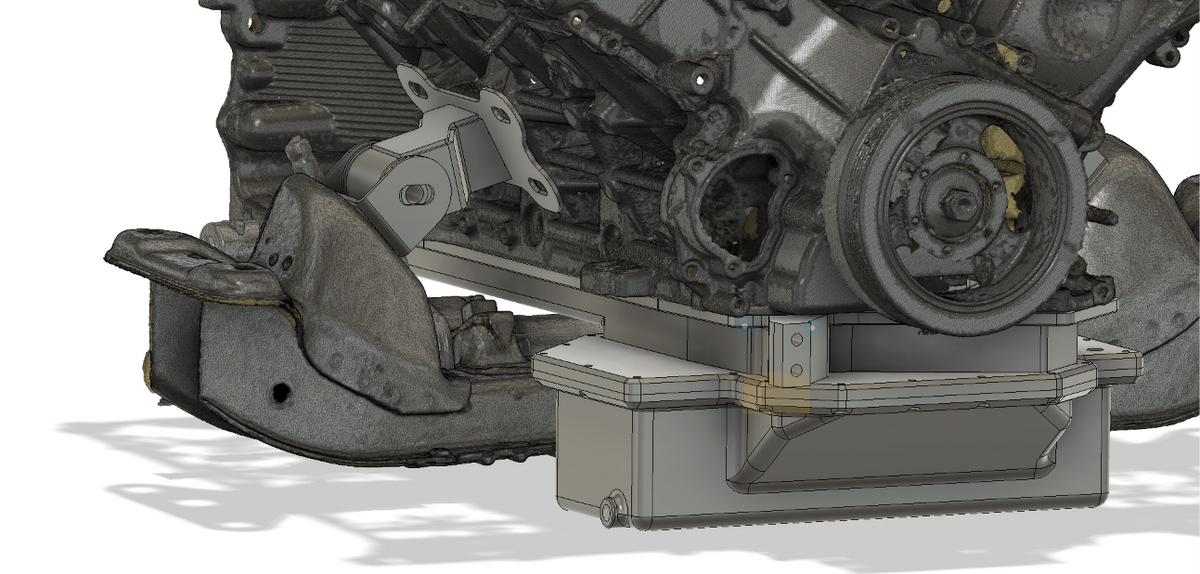

• IMR VK56DE S-chassis engine mount, driver's side

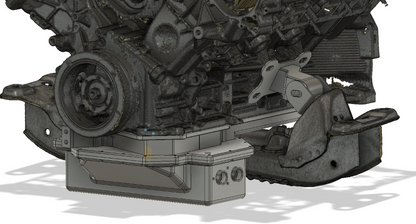

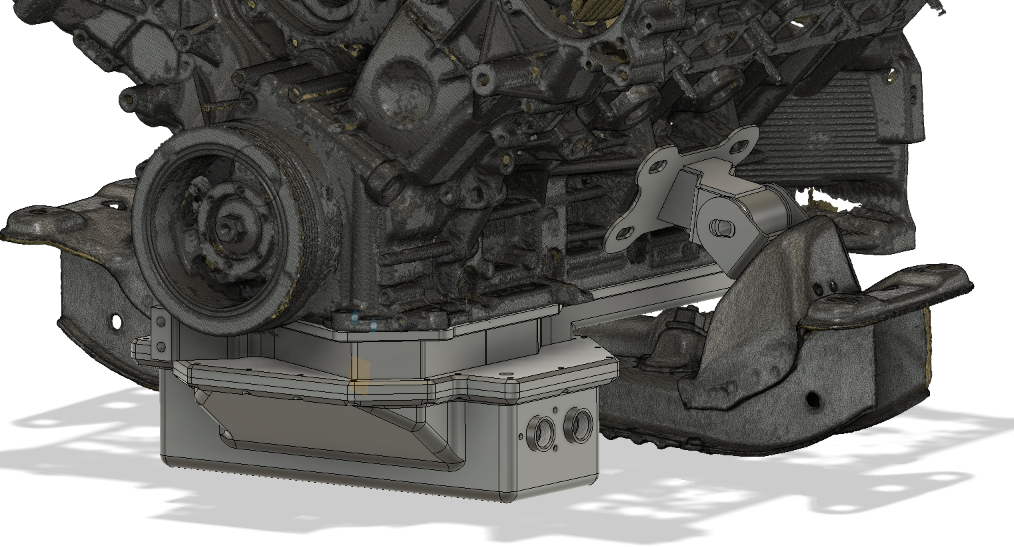

  • IMR VK56DE S-chassis engine mount, passenger's side

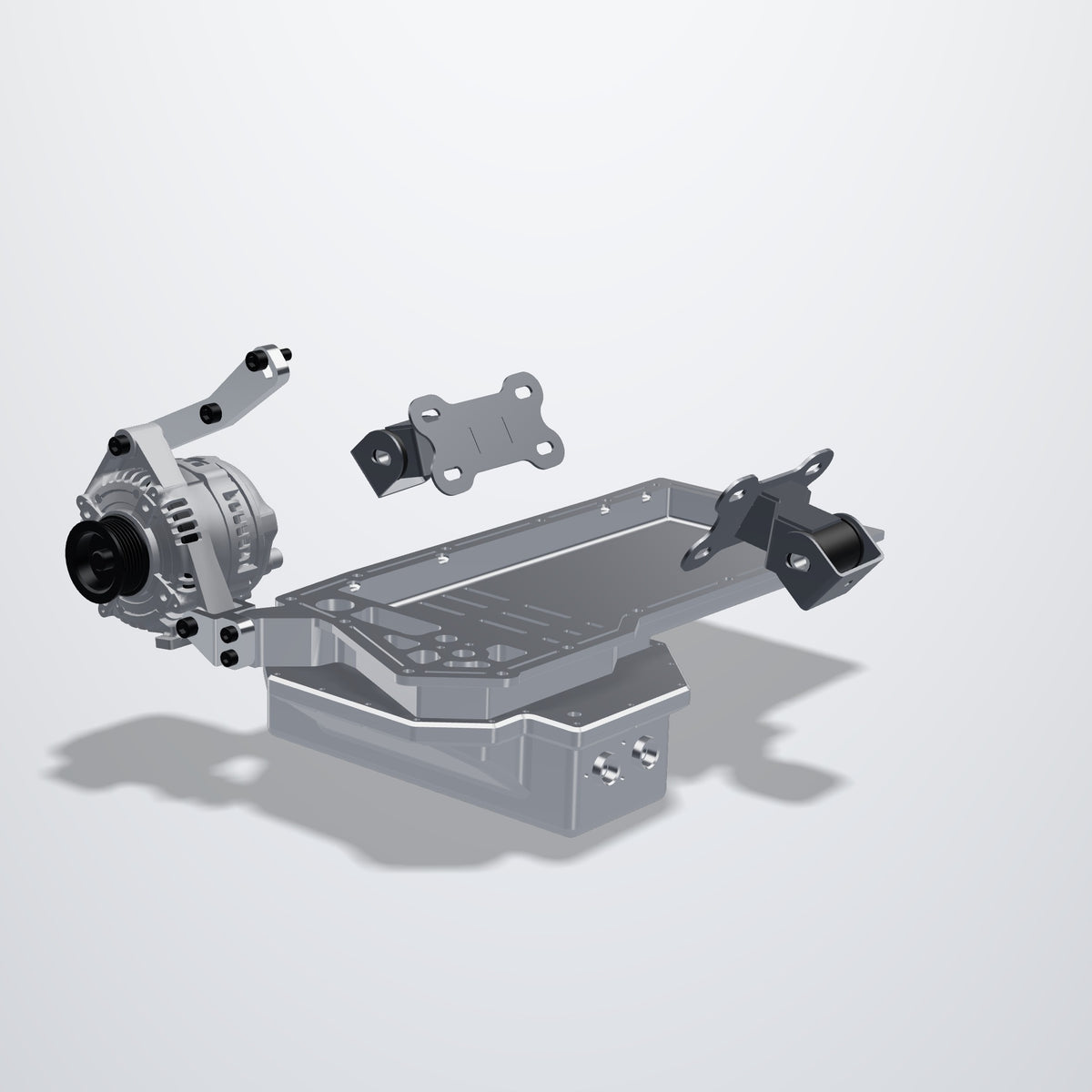

  • Nissan VK56DE with IMR S-chassis engine mounts and low-mount LS alternator brackets, front right view

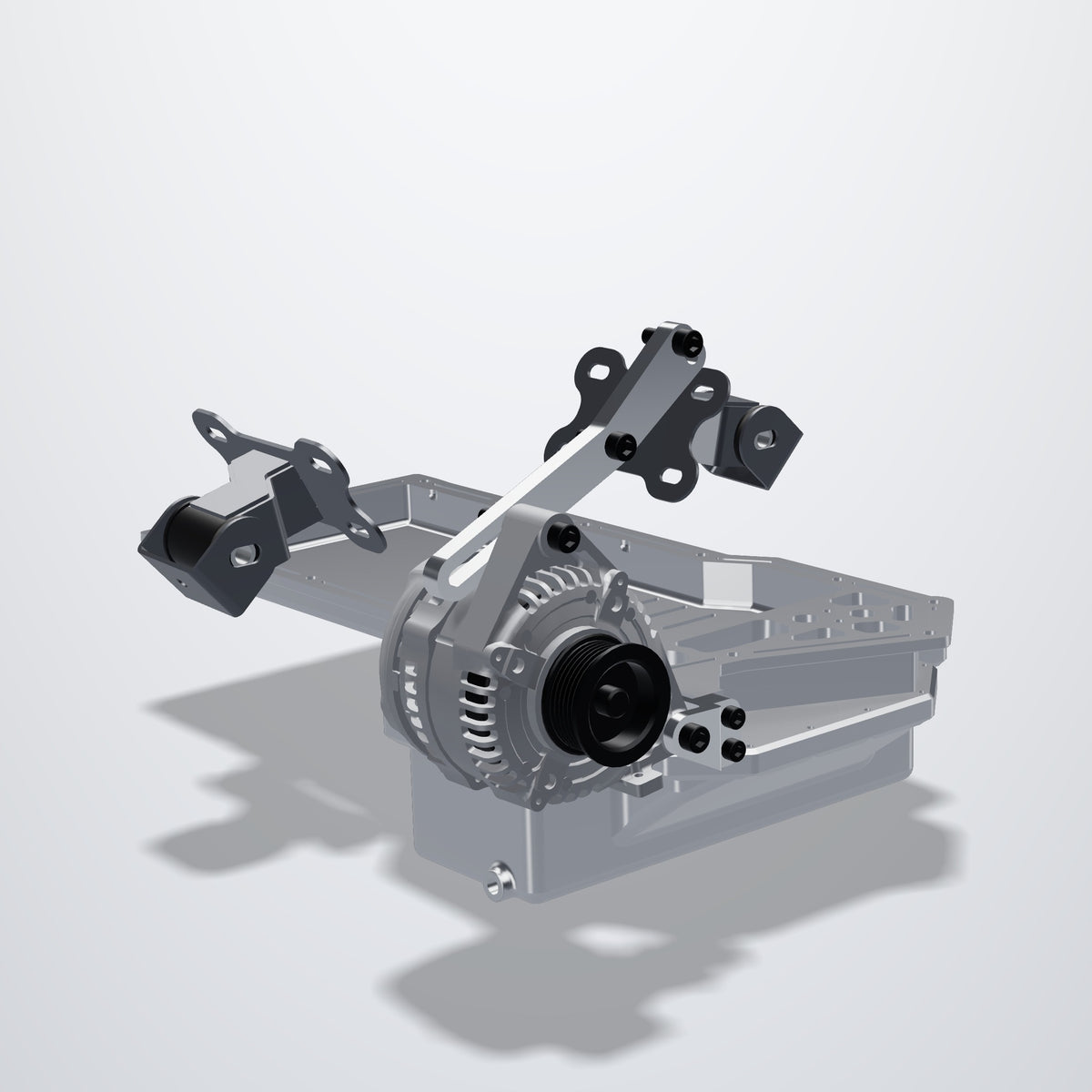

  • Nissan VK56DE with IMR S-chassis engine mounts and low-mount LS alternator brackets, front view

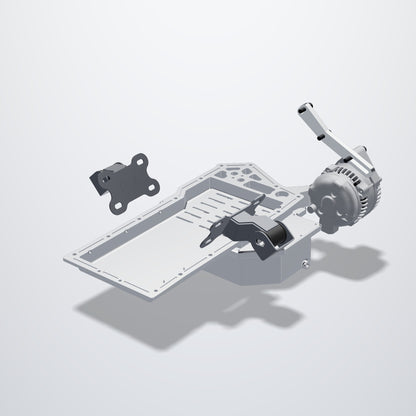

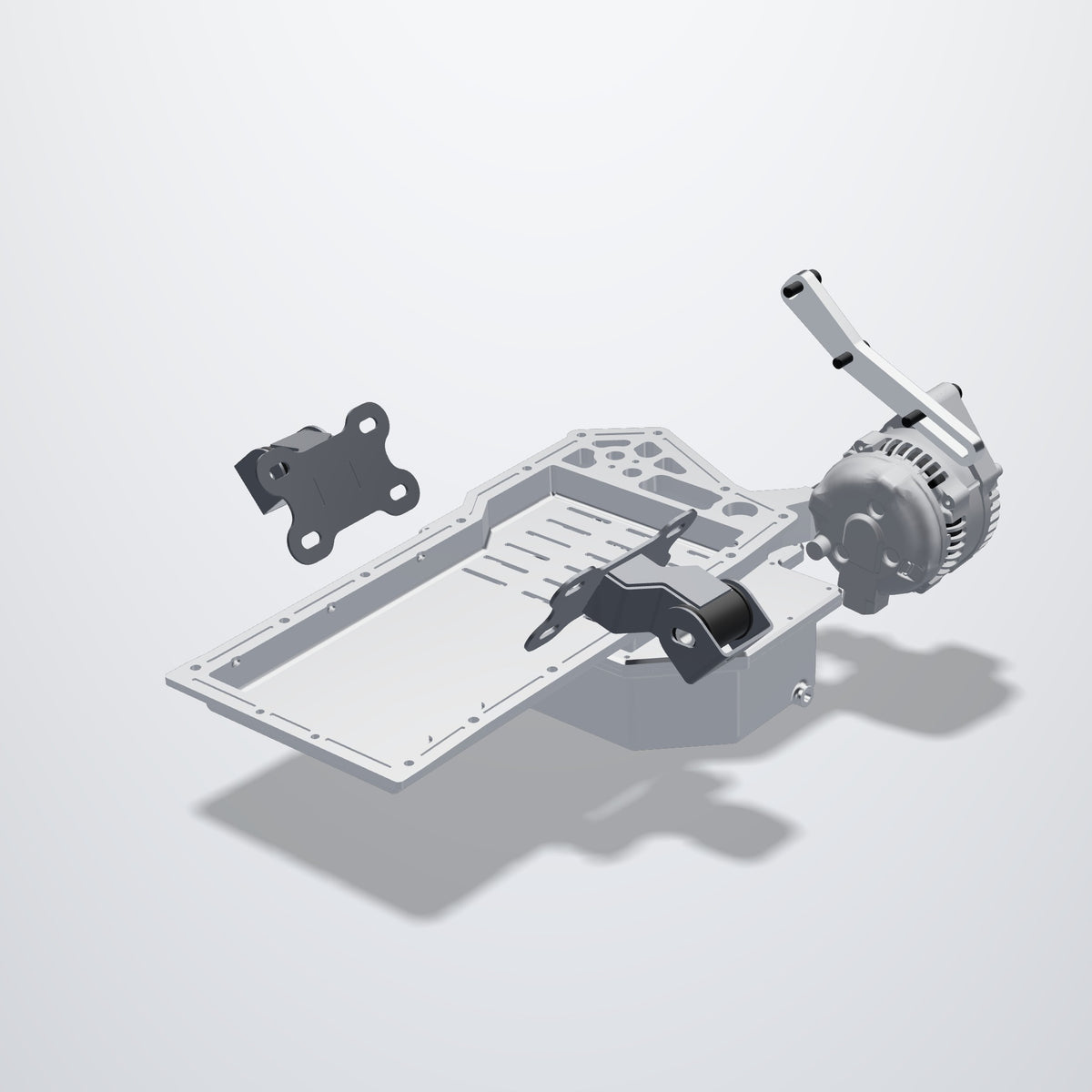

  • Nissan VK56DE with IMR S-chassis engine mounts and low-mount LS alternator brackets, rear view

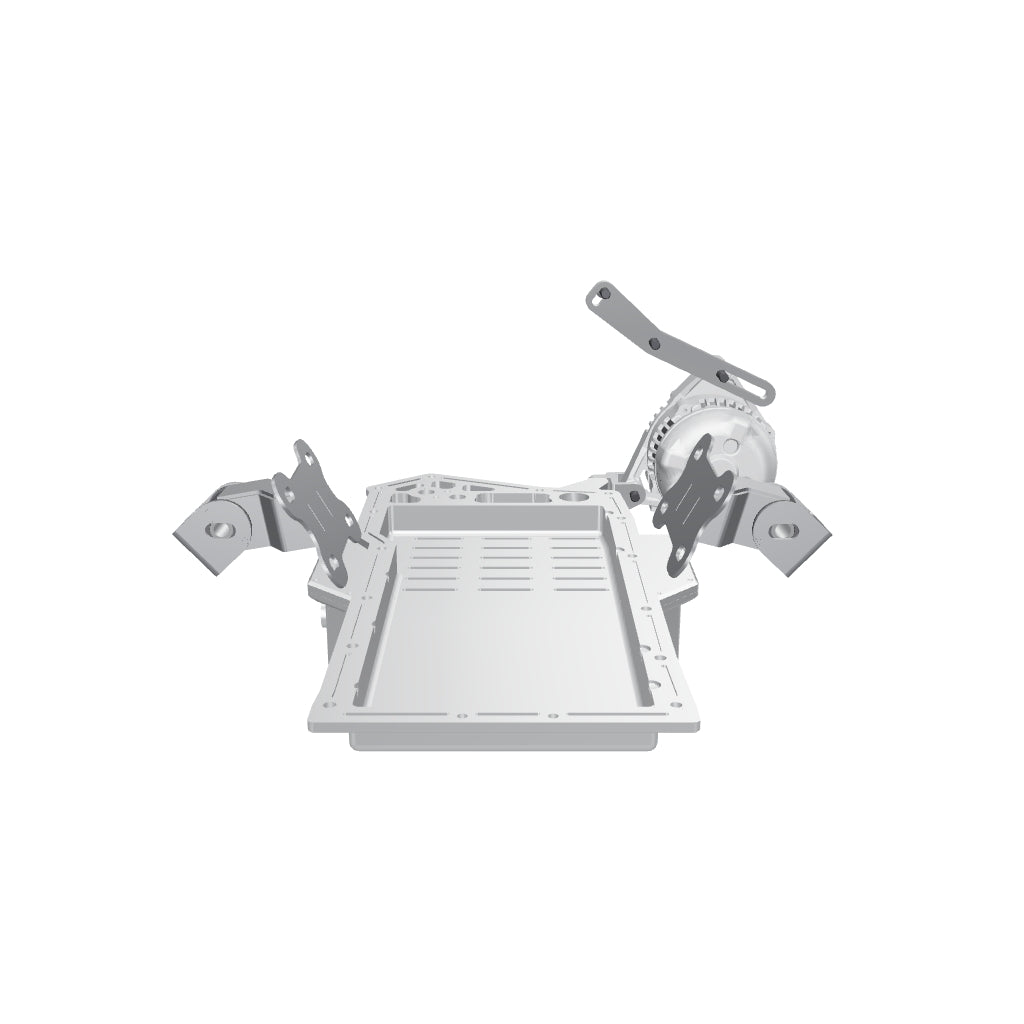

  • 3D model of the Nissan VK56DE with IMR S-chassis engine mounts and LS alternator brackets
1 6

IMR Fabrication

VK56DE S-Chassis Engine Mounts (S13 / S14 / S15)

VK56DE S-Chassis Engine Mounts (S13 / S14 / S15)

$500.00 NZD
$500.00 NZD
Sale Sold out

Prices exclude GST. 15% GST is added at checkout for New Zealand orders.

IMR's engine mounts for fitting the Nissan VK56DE V8 into S13, S14 and S15 Silvias. They're designed in CAD around a 3D scan of the VK56 and the S-chassis front crossmember, and built to work with our VK56DE Silvia alloy sump.

Each mount is fabricated from 3mm mild steel with Nolathane polyurethane bushes, for a strong mount that holds the V8 firmly in place.

Key design features

  • 3mm mild steel construction
  • Nolathane bushes
  • Driver's and passenger's side mounts
  • Supplied with bolts and mounting hardware
  • Designed to suit the IMR VK56DE Silvia alloy sump
  • Designed and Fabricated in New Zealand

Made to order. Contact us for fitment and lead times.
