IMR Fabrication
VK56DE 350Z / 370Z Alloy Sump
VK56DE 350Z / 370Z Alloy Sump
Regular price
$5,330.00 NZD
Regular price
Sale price
$5,330.00 NZD
Unit price
/
per
Prices exclude GST. 15% GST is added at checkout for New Zealand orders.
V-band flange: please email us at ryan@imrfab.com with the turbo you are using, so we can supply the correct flange.
Couldn't load pickup availability

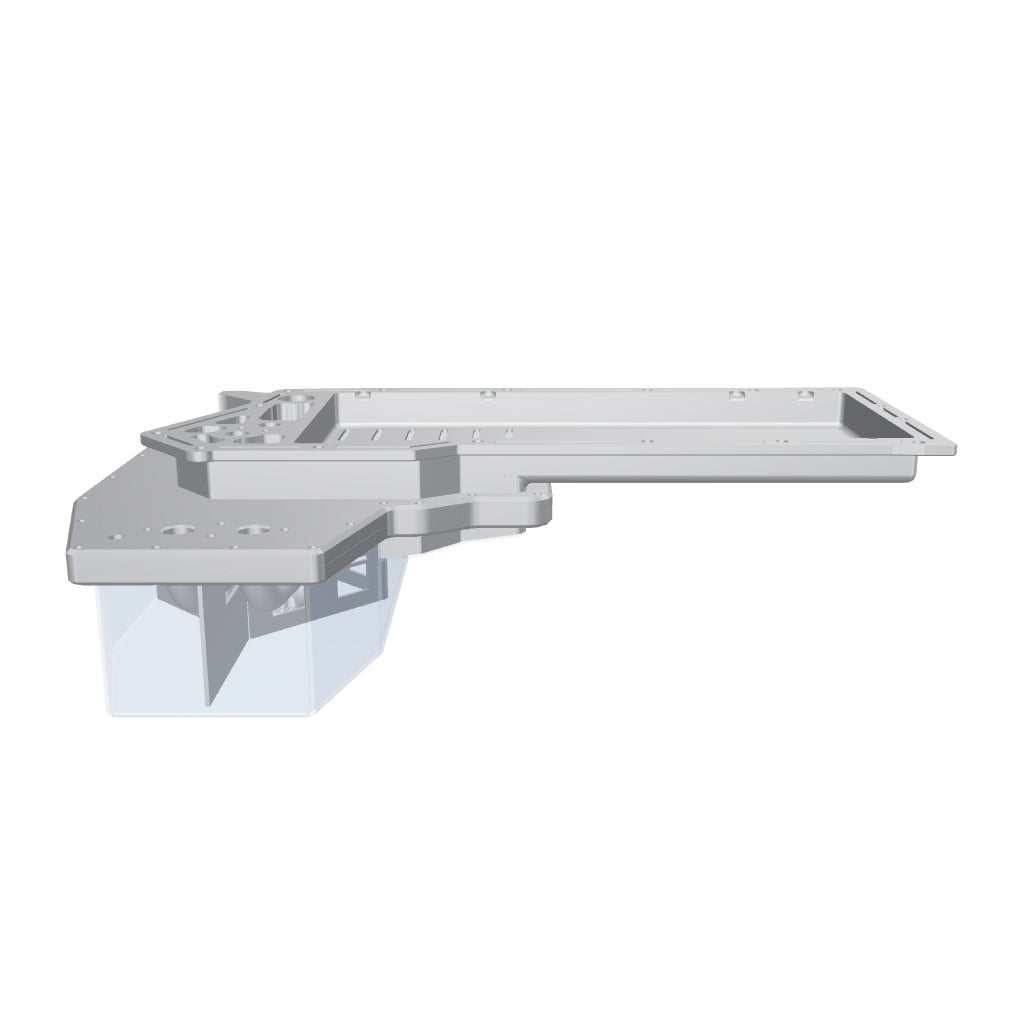

IMR is proud to bring a scratch-built alloy sump for the Nissan VK56DE (Titan) V8, made for VK56-powered Nissan 350Zs, 370Zs and similar chassis.
The race sump holds around 6 liters in a baffled and gated sump tank. A thick front sump flange with a removable oil pickup makes servicing easy, and -10AN in and out fittings run a remote oil filter and cooler.
Key design features
- CNC Machined Main flanges
- 3D printed internal oil routing tubes
- 3D printed Performance oil Pickup
- 3mm Sump tank body construction
- TIG welded
- 6 liter capacity, baffled and gated oil pickup
- -10AN in/out fittings for a remote oil filter and cooler
- Designed and Fabricated in New Zealand
Made to order with a build time of 4 weeks
