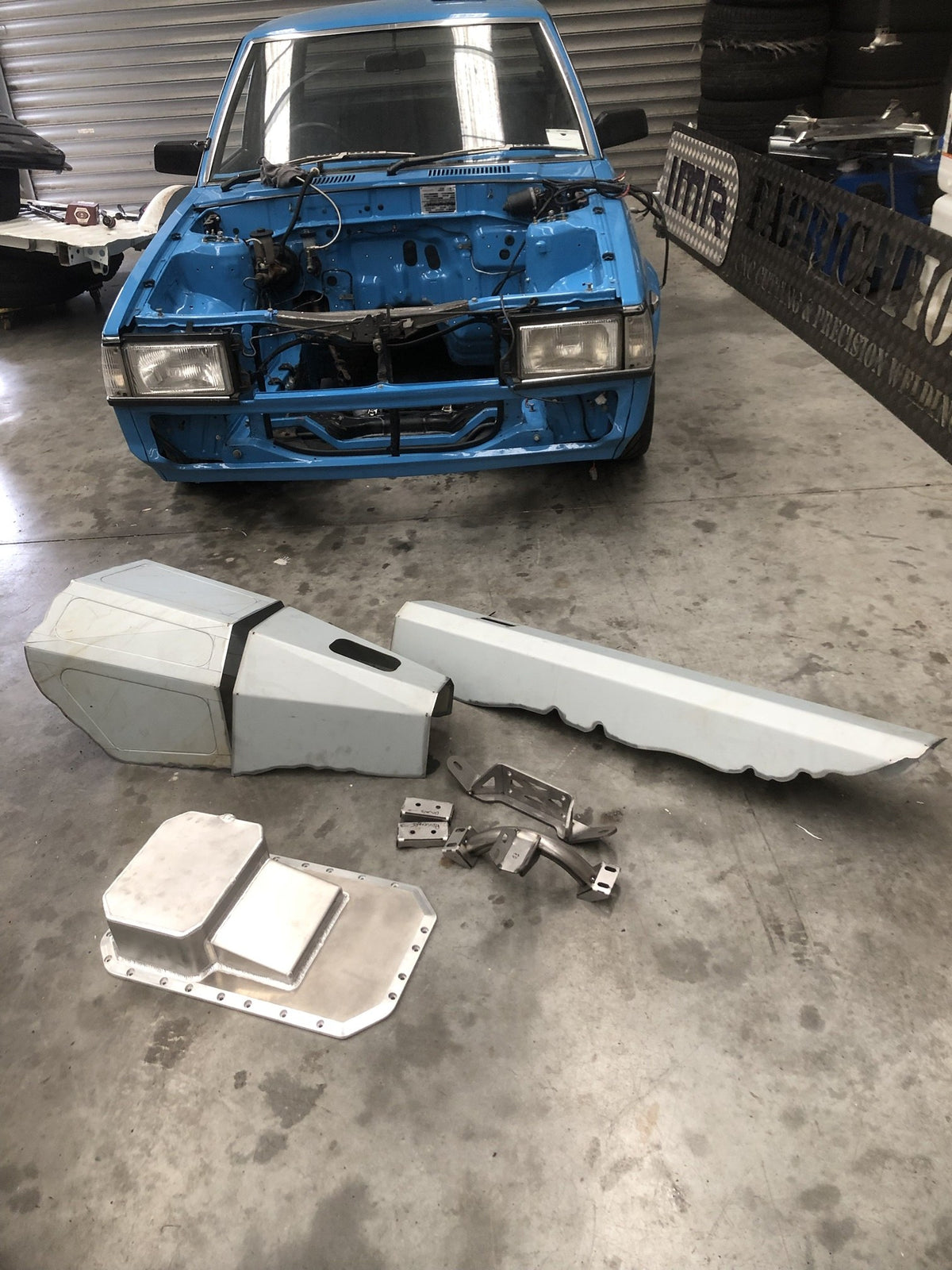

• IMR Mazda 626 sedan 20B conversion kit: alloy sump, engine and transmission mounts and transmission tunnel, in front of the 626

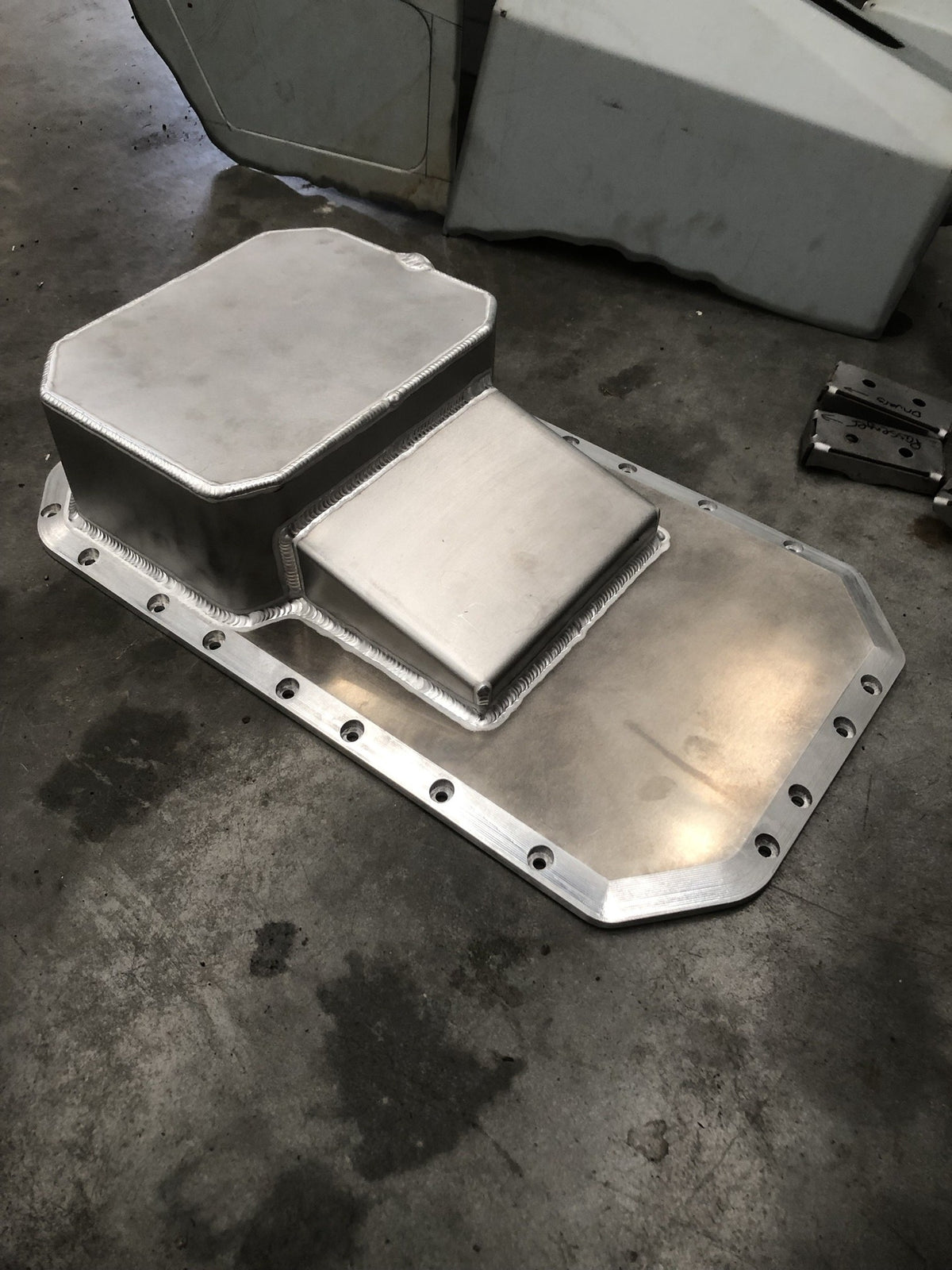

  • Custom TIG welded alloy sump with machined flange from the IMR Mazda 626 20B conversion kit

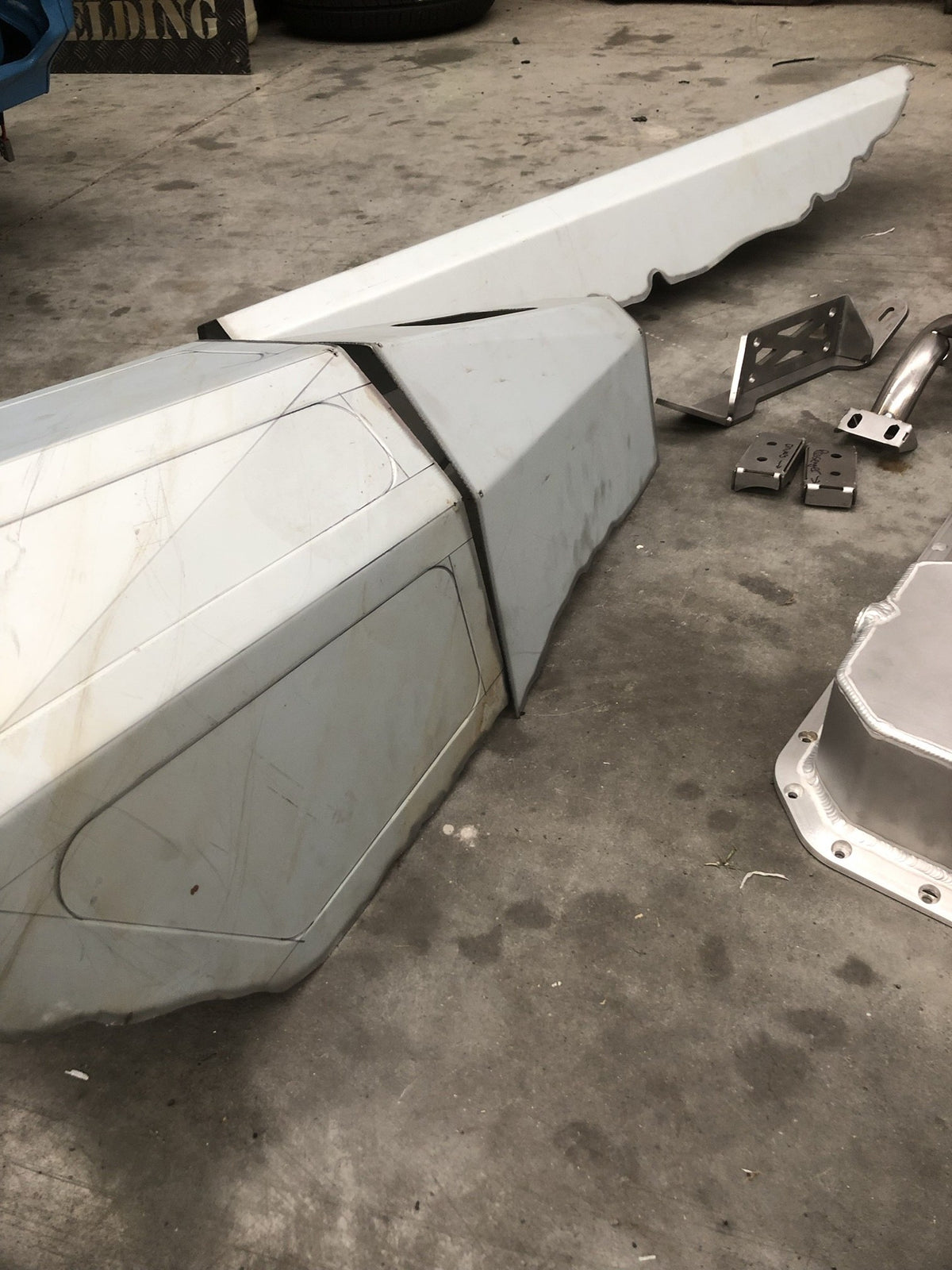

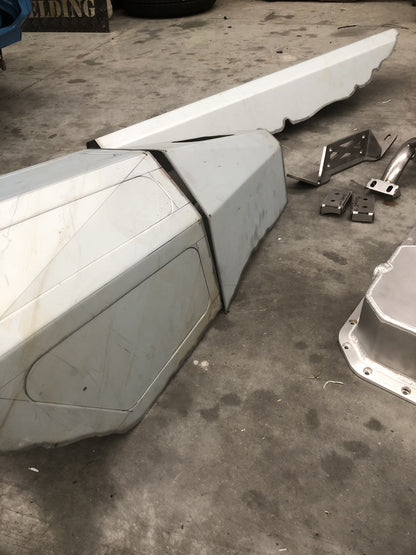

  • Transmission and driveshaft tunnel from the IMR Mazda 626 20B conversion kit

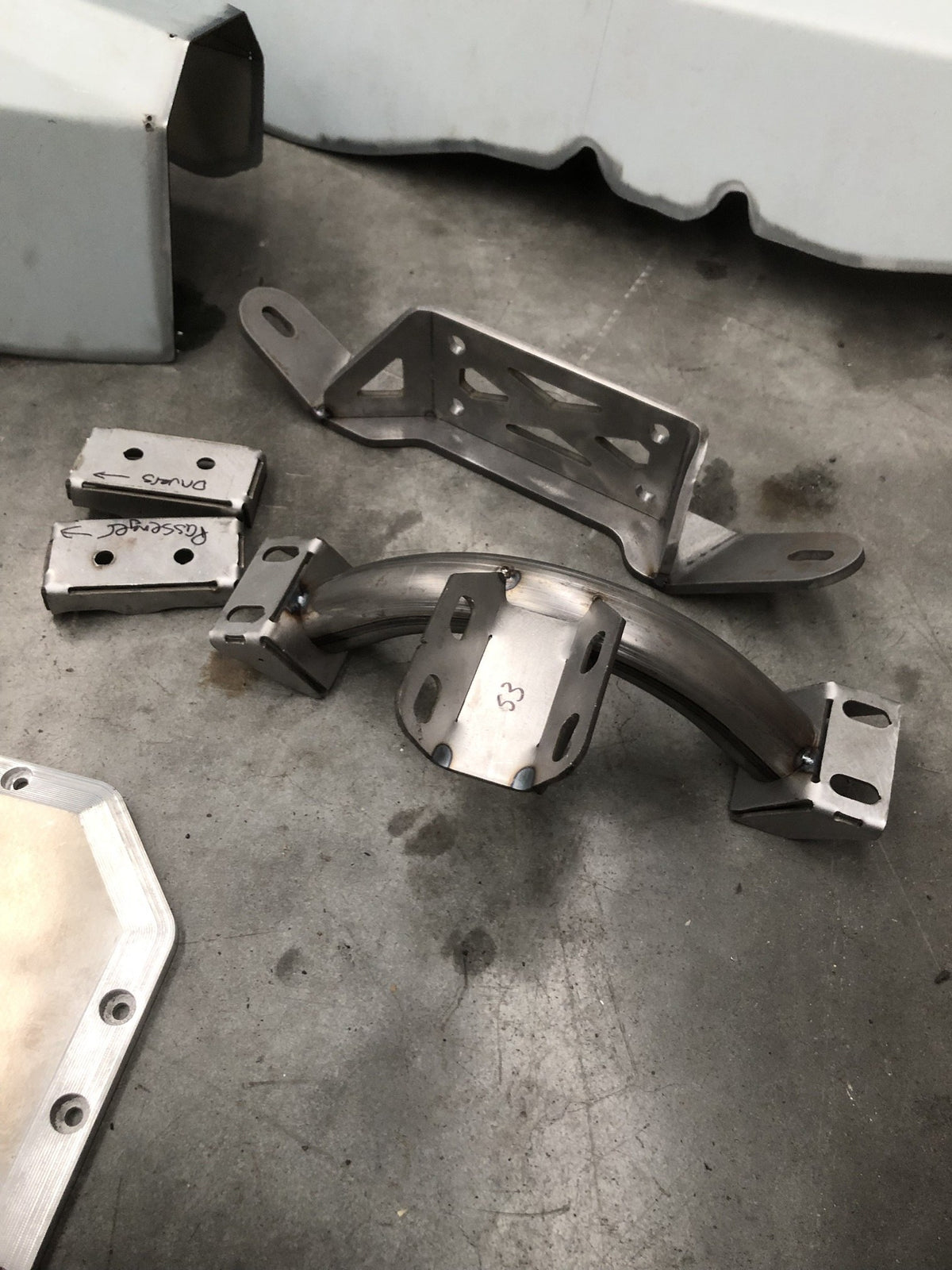

  • Engine mounts and transmission mount from the IMR Mazda 626 20B conversion kit

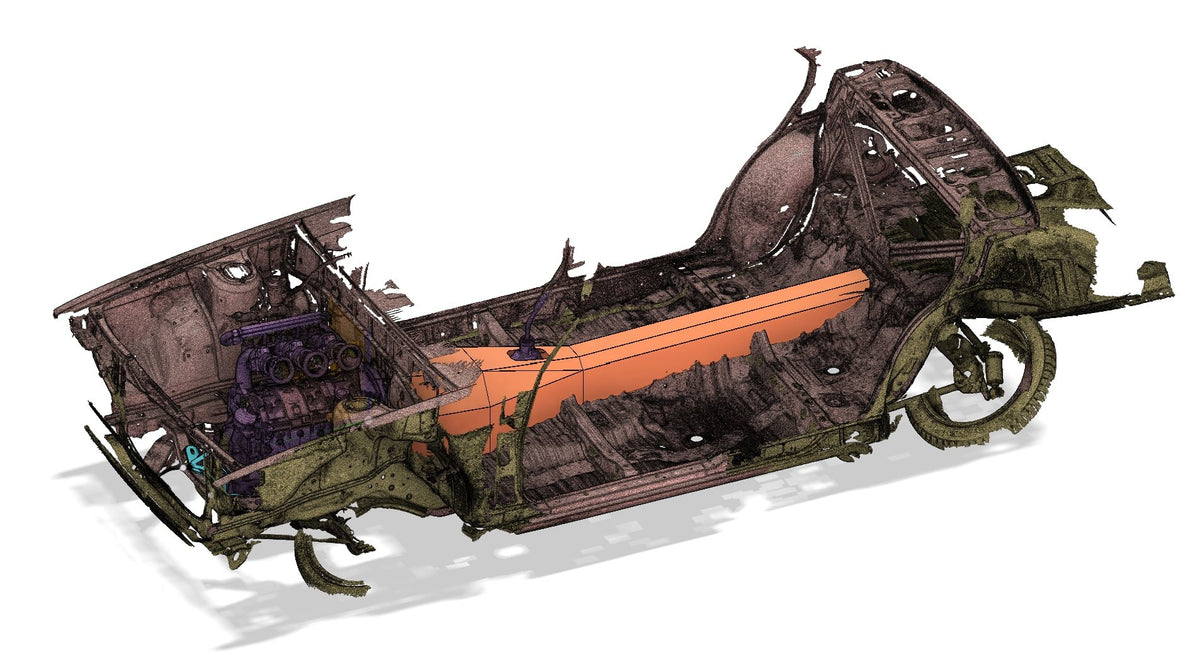

  • 3D scan of the Mazda 626 chassis and 20B engine with the transmission tunnel designed around it

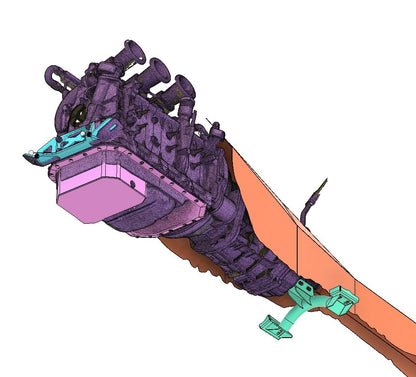

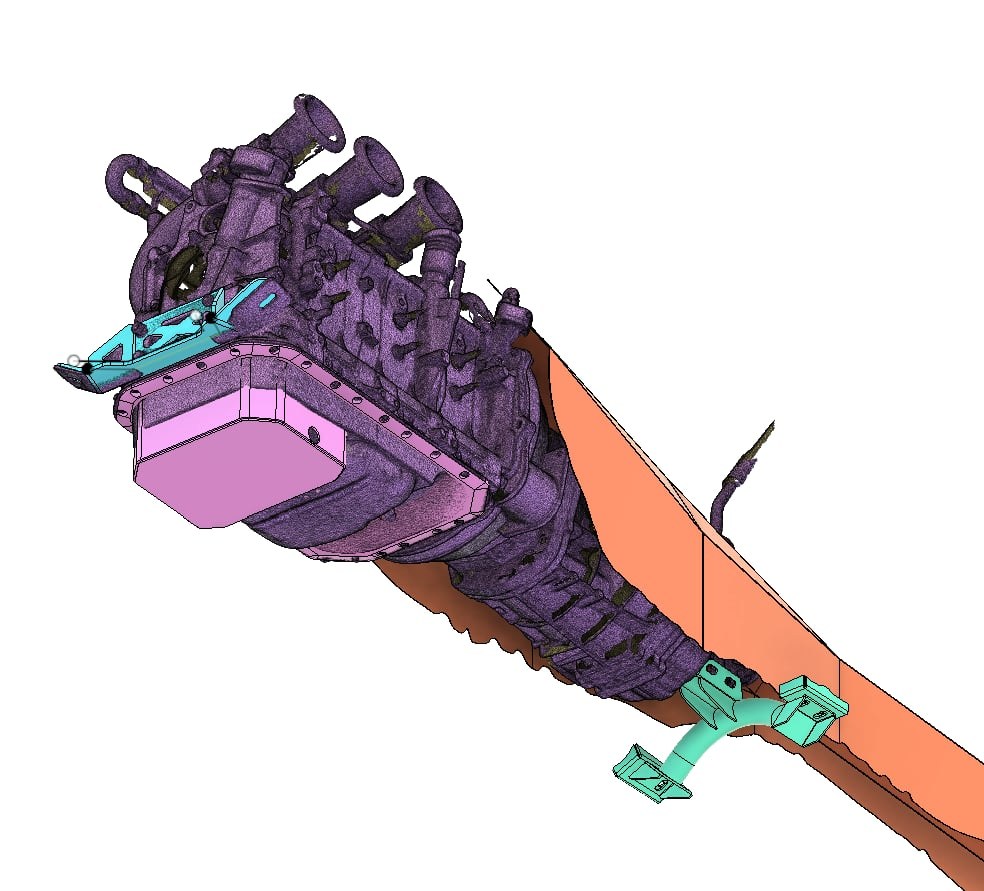

  • CAD of the 20B sump, engine mount and transmission mount designed around the scanned engine and gearbox
1 6

IMR Fabrication

Mazda 626 Sedan 20B Conversion Kit (DIY)

Mazda 626 Sedan 20B Conversion Kit (DIY)

$4,500.00 NZD
$4,500.00 NZD
Sale Sold out

Prices exclude GST. 15% GST is added at checkout for New Zealand orders.

DIY kit for fitting a Mazda 20B three-rotor into the Mazda 626 sedan. Every part is designed in CAD around a 3D scan of the car and engine, so it fits first time.

Kit includes

  • Custom fabricated alloy sump with a machined flange, TIG welded
  • Engine mounts (driver's and passenger's side)
  • Transmission mount
  • Transmission and driveshaft tunnel, ready to weld in

Supplied as a DIY kit for you to fit and weld in. Made to order in New Zealand. Contact us for fitment and lead times.
