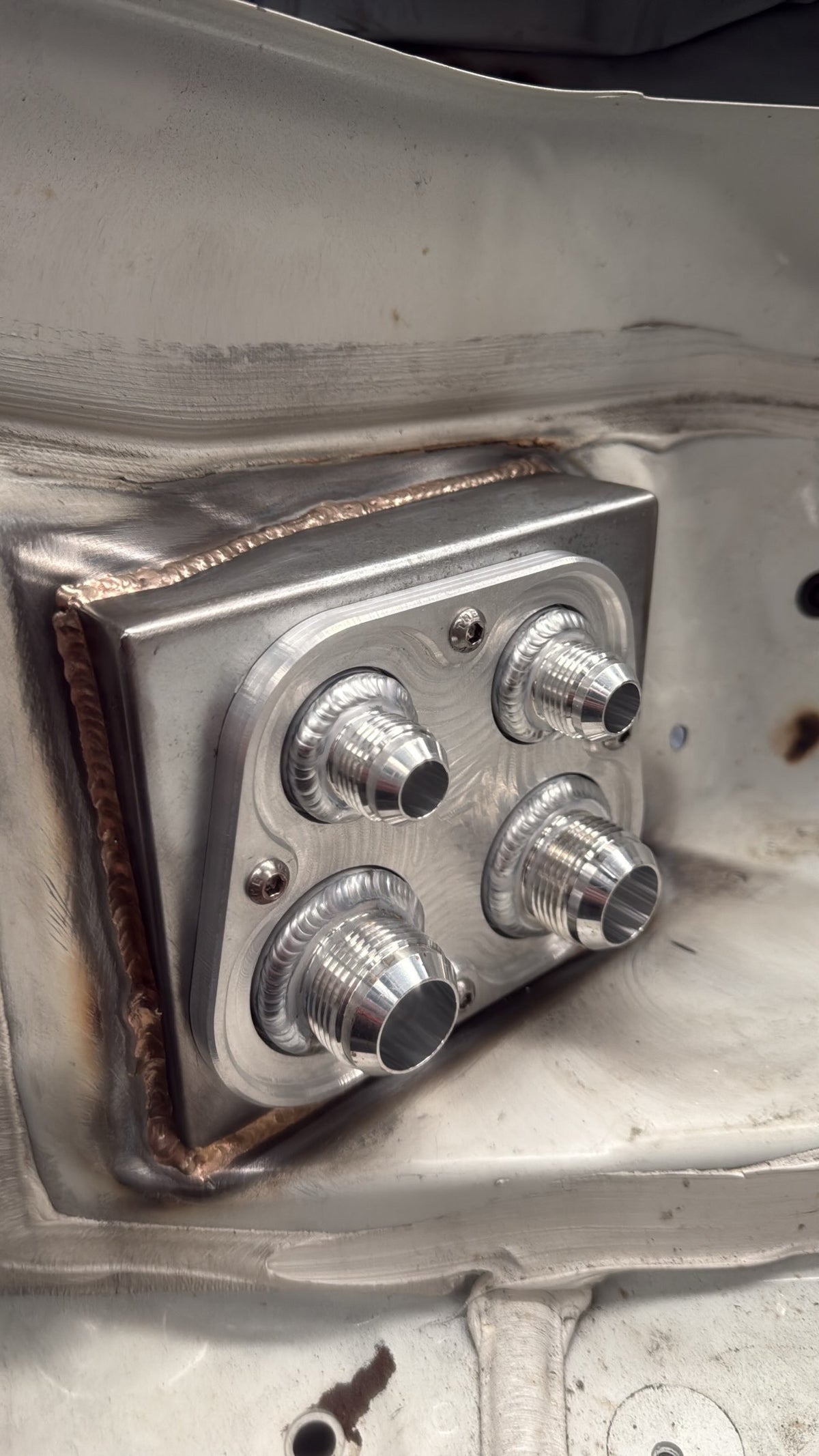

• IMR GR86 dry sump firewall bulkhead plate with -16, -12 and -10 AN fittings, fitted to the weld-in panel

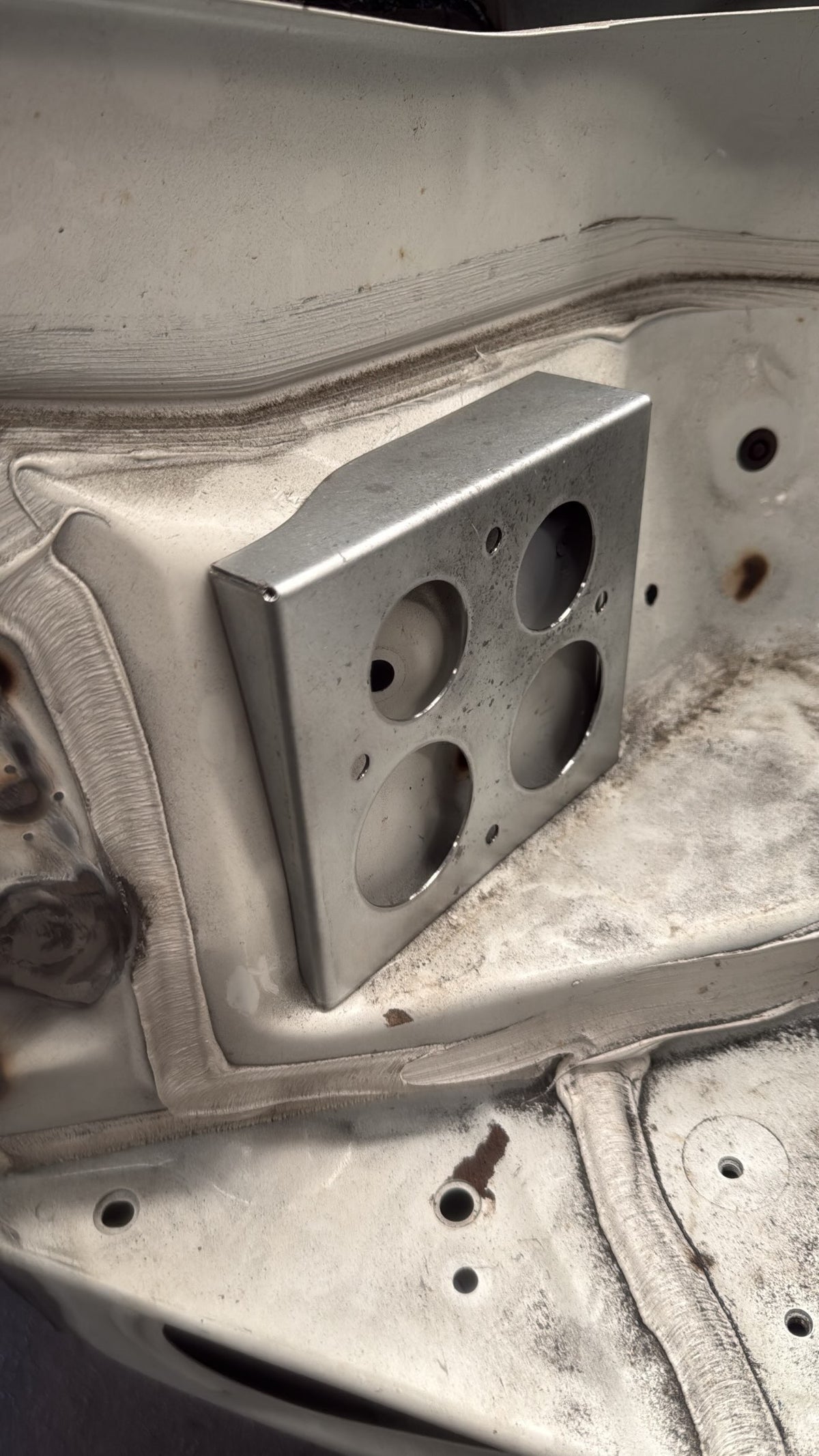

  • IMR GR86 weld-in firewall panel for the dry sump bulkhead plate
1 2

IMR Fabrication

GR86 Dry Sump Firewall Bulkhead Plate (with Weld-In Panel)

GR86 Dry Sump Firewall Bulkhead Plate (with Weld-In Panel)

$534.00 NZD
$534.00 NZD
Sale Sold out

Prices exclude GST. 15% GST is added at checkout for New Zealand orders.

CNC machined aluminium firewall bulkhead plate for running dry sump and breather lines through the firewall of a Toyota GR86. It comes with a weld-in panel: weld the panel into the firewall, then the billet plate bolts to it.

Ports

  • 1 x -16 AN dry sump feed
  • 1 x -12 AN dry sump return
  • 2 x -10 AN breather

Key design features

  • CNC machined aluminium cover plate
  • TIG welded aluminium AN male fittings
  • Weld-in firewall panel included
  • Designed and fabricated in New Zealand

Please note: hose fittings (AN hose ends) and hoses are not included.
